Please provide Executable or Video for Mirror Sample


I am on a DirectX 12 rendering path with Visual Studio 2015. That means setting up the Mirror sample with VisualStudio 2013 is a real pain I rather would not do. However, in order to better understand the Mirror sample I would very much like to have the excecutable available. If that is not possible I guess a video showing the demo would also help a great deal.

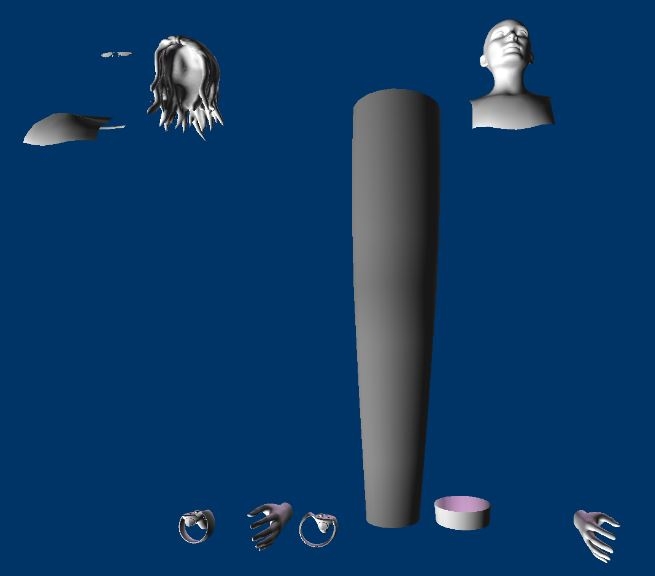

As you can see I have no problem downloading the Avatar meshes from Oculus, but still have some questions on how the different API in the AvatarSDK work together. Having a working demo, not only the source code, would be very helpful.

Thank you!


  • lamour42lamour42 Posts: 119
    The cmake stuff just doesn't work for me. Maybe someone has gone through this successfully and could share a proper VisualStudio 2013/2015 project? I would be very thankful.  :(
  • metrocubemetrocube Posts: 55 Oculus Staff
    Hi, @lamour42!  I just rewrote the cmake install steps to add a couple missing options. If Windows gives you security prompts when you double-click generate_projects.cmd, click "Yes".

    Let me know if it still doesn't work for you.
    1. Download and install CMake from https://cmake.org/download and select the option to Add CMake to the system path for all users.
    2. In Windows Explorer, locate the OVRAvatarSDK\Samples folder and double-click generate_projects.cmd.
    3. Wait for the script to finish creating the VS2013 folder and solution.
    4. Open and build the solution: Samples\VS2013\Mirror.sln.
    5. In Visual Studio, right-click Mirror in Solution Explorer and then click Set as Startup Project.
    6. Press F5 to start debugging.
  • user_293619102542778user_293619102542778 Posts: 1
    edited January 2017

  • metrocubemetrocube Posts: 55 Oculus Staff
    If it doesn't work, unzip this VS2013.zip to your OVRAvatarSDK/Samples folder and see if you can run the solution. This is the VS2013 folder the CMake process creates.
  • lamour42lamour42 Posts: 119
    edited January 2017
    Thanks for the help. I got it to work for Visual Studio 2015 by changing generate_projects.cmd to this:

    @cmake -G "Visual Studio 14 2015 Win64" -H. -BVS2013

    My error obviously was to assume cmake would be clever enough to use whatever Visual Studio version it finds on my machine. As I do not have VS2013 the above change was necessary to let cmake work together with VS 2015.
  • HalleFordHalleFord Posts: 3
    I followed the instructions above, and they were extremely helpful.  Still, the project doesn't run in Visual Studio.... I get the following error when I run debug: "Failed to open shader files".  The details from the debug window are below.  Any assistance would be greatly appreciated!

    GetSignatureToken get_signature error: OVR1243567: Missing entitlement for xxx (1971031)

    GetUserID failed: OVRxxx: Must call get_signature first (1971051)

    OAF response error [WindowsPlatform::GetGKValue]: OVRxxx: Must call get_signature first (1971051)

    Failed to fetch FBNS credentials from OAF: OVRxxx: Must call get_signature first (1971051)

    requestOafRoomUpdate response error: OVRxxx: Must call get_signature first (1971051)

    requestOafLaunchDetailsUpdate response error: OVRxxx: Must call get_signature first (1971051)

    Failed to set FBNS credentials: OVRxxx: Must call get_signature first (1971051)
